Zünd introduced new DLC-coated router bits for improved efficiency

by FESPA Staff | 26/04/2019
Zünd introduced new DLC-coated router bits for improved efficiency

The coating reduces friction and increases wear resistance, thereby delivering very high-quality result, improved performance and cost efficiency. The new router bits are especially beneficial in routing applications involving aluminum, aluminum composites, wood, and PVC.

Friction and wear during the routing process substantially affect the quality of cut parts, routing performance, and longevity of bits. Thin-film coatings are among the most effective ways to achieve significant improvements in performance and productivity. Innovative DLC (diamond-like carbon) coating permits greater processing speeds and cutting depths. The number of passes can be reduced, which significantly increases routing productivity. Up to 4 mm thick aluminum composites can be processed in a single pass, at speeds of up to 11 m/36 ft per min. In many cases, a finishing pass becomes unnecessary, which further reduces production time.

Because of the resulting smooth, durable surfaces it creates, thin-film coating reduces friction, provides excellent wear resistance, and more than doubles the life of the bit. The same properties also help prevent material build-up on the bit when processing acrylic or aluminum. Reduced drag forces on the material permit routing more detailed contours, and even smaller parts can be routed without the need for bridges to hold them in place.

Smoother surfaces also diminish the amount of heat generated during routing, which eliminates the need for cooling or lubrication. Both aluminum and aluminum-composite panels can be dry routed when using these bits, which facilitates handling and leaves both cut pieces and working area clean and dry.

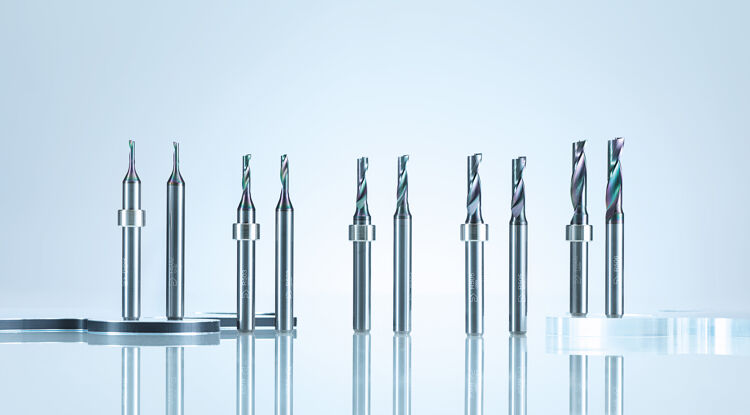

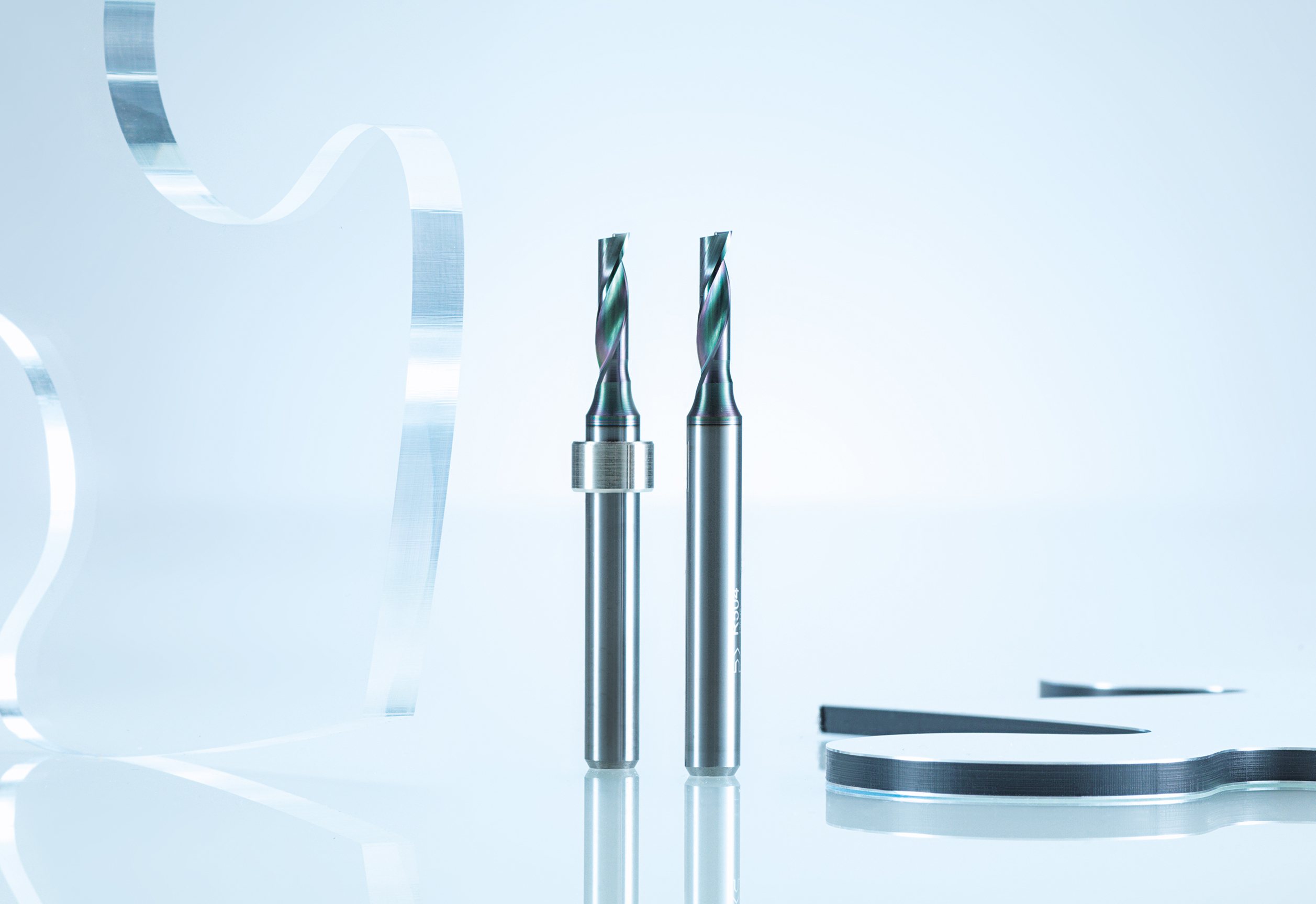

The new bits are optimized for use with Zünd routing spindles and are available in diameters from 2 to 6 mm and for routing depths up to 22 mm/.87 in. They are also available with stop ring, which makes them suitable for use with the automatic tool changer ARC.

FESPA Global Print Expo 2019 is Europe’s largest speciality print exhibition for screen and digital wide format print, textile printing and signage solutions. Visit Zünd at stand F30 in hall B5 at the Messe Munich between the 14-17 May 2019 and discover the available features. Please use promo code FESG902 to register for free.
